Apple IIc Plus

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  A2S4500
Blue Arrow Manufacture Date/Year:  1989


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Apple IIc Plus front Apple IIc Plus back Apple IIc Plus side1 Apple IIc Plus side2
Apple IIc Plus herol Apple IIc Plus heror Apple IIc Plus top1 Apple IIc Plus top2


Blue Arrow Specifications

Core Unit:

  • Processor:  1 or 4 MHz (user selectable) 65C02
  • RAM:  128K to 1.15 MB
  • Graphics:
    • Graphics Display Modes:
      • Low-resolution 16-color graphics:
        1. 40h x 48v color blocks
        2. 40h x 40v with four lines of text
      • High-resolution 6-color graphics:
        1. 280h x 192v dots
        2. 280h x 160v with four lines of text
      • Double high-resolution 16-color graphics:
        1. 560h x 192v dots
    • Text Display Modes:
      • 40-column text, 24 lines, 5 x 7 dot matrix (suitable for television or monitor)
      • 80-column text, 24 lines, 5 x 7 dot matrix (suitable for monitor only)
    • Note:
      • All graphics modes may be displayed on a television or monitor
      • Composite monitor or RF Modulator to TV supported
  • Storage:
    • Compatible External Drives:
      • Apple 3.5 drive (800K)
      • UniDisk 3.5 (800K)
      • Apple 5.25 drive
    • Built-in Internal Drive:
      • 800K 3.5-inch floppy disk drive, auto eject
      • Note:
        • 400K (single sided) 3.5-inch floppy disks are not compatible
  • Ports:
    • Joystick/Mouse (DB-9)
    • Printer, serial-1 (mini DIN-8)
    • Modem, serial-2 (mini DIN-8)
    • Video expansion port (DB-15)
    • Floppy drive SmartPort (DB-19)
    • NTSC composite video output (RCA jack)



ports

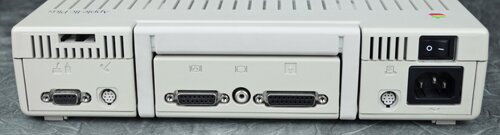

Apple IIc Plus Ports

Operating System:

  • Compatible Operating Systems:
    • DOS 3.3, ProDOS, Pascal
  • System Disk:
    • Apple II System Utilities, Version 3.1
  • Languages in ROM:
    • Applesoft BASIC
  • Screen Captures:
    • Apple II System Utilities Version 3.1

Keyboard and Mouse:

  • Keyboard:  Built-in
  • Mouse:  DB-9



keyboard

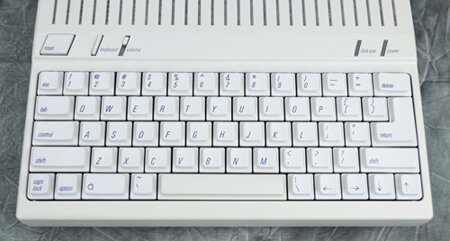

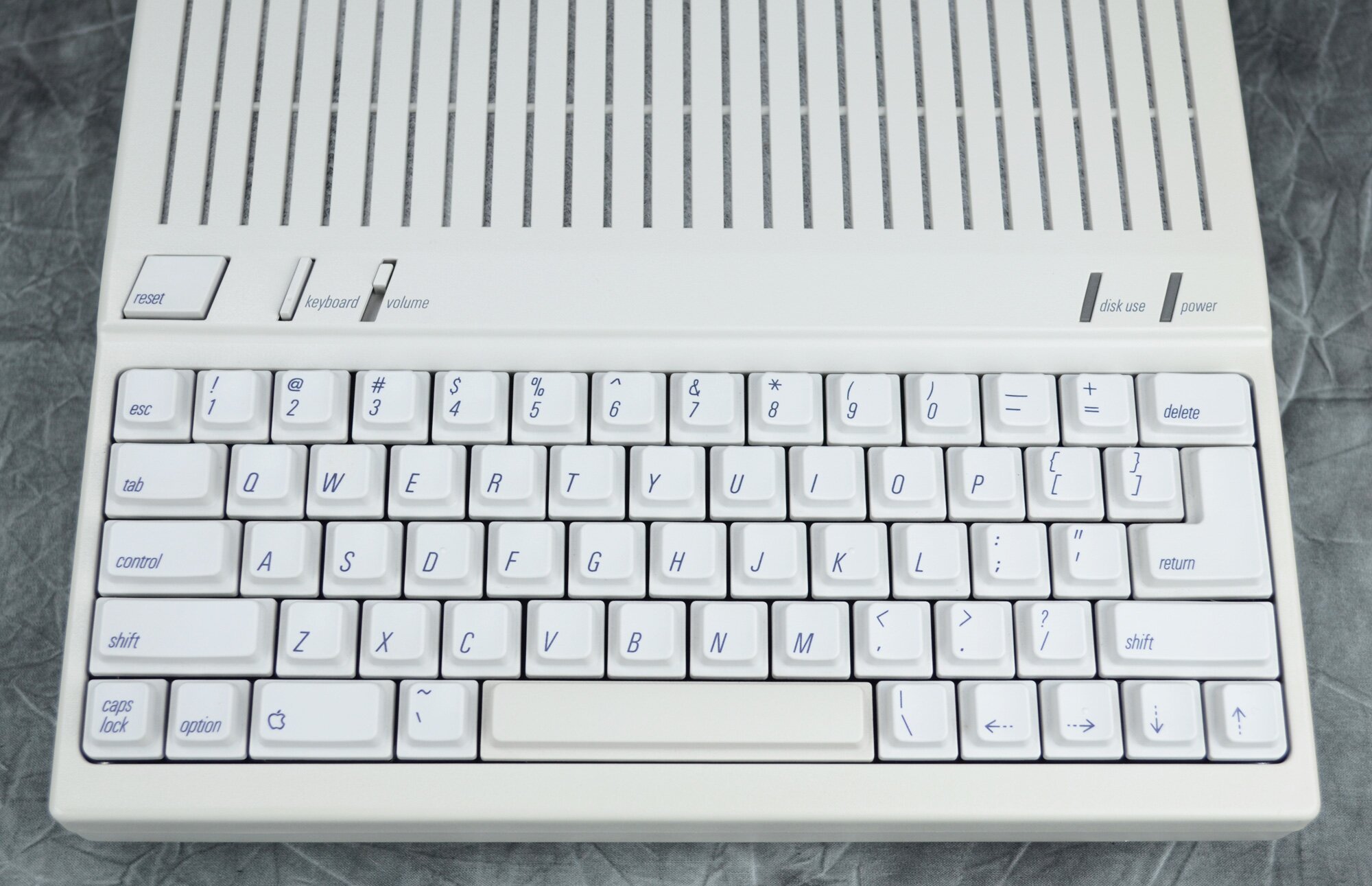

Apple IIc Plus Keyboard

Physical Dimensions:

  • Size (Inches):  2.5 H x 12 W x 11.5 D
  • Weight (Pounds):  7


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Apple IIc Plus o1 Apple IIc Plus o2 Apple IIc Plus o3 Apple IIc Plus o4
Apple IIc Plus o5 Apple IIc Plus o6 Apple IIc Plus o7 Apple IIc Plus o8
Apple IIc Plus o9
