iMac 2 GHz Intel Core Duo (20-inch)

Blue Arrow Company:  Apple Inc.
Blue Arrow Model Number:  A1174
Blue Arrow Manufacture Date/Year:  2006


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
iMac 2 GHz Intel Core Duo (20-inch) front iMac 2 GHz Intel Core Duo (20-inch) back iMac 2 GHz Intel Core Duo (20-inch) side1 iMac 2 GHz Intel Core Duo (20-inch) side2
iMac 2 GHz Intel Core Duo (20-inch) herol iMac 2 GHz Intel Core Duo (20-inch) heror iMac 2 GHz Intel Core Duo (20-inch) top1 iMac 2 GHz Intel Core Duo (20-inch) top2


Blue Arrow Specifications

Core Unit:

  • Processor:  2 GHz Intel Core Duo (T2400)
  • RAM:
    • RAM Type:  PC2-5300 (667MHz) DDR2
    • RAM Slots:  2
    • Min - Max RAM:  512 MB - 2 GB
  • Graphics Support:
    • Display:
      • 20-inch (viewable) widescreen TFT active-matrix LCD, millions of colors
    • Resolution:
      • Native resolution of 1680 x 1050
      • Digital resolutions up to 1920 x 1200
      • Analog resolutions up to 2045 x 1536
    • Other Details:
      • ATI Radeon X1600 graphics processor using PCI Express
      • 128 MB of GDDR3 video memory
      • Upgrade option to 256 MB GDDR3 SDRAM
      • Support for external display in video mirroring mode
  • Video Support:
    • Built-in iSight camera
    • mini-DVI port
    • VGA output
    • S-video and composite video output
  • Audio Support:
    • Built-in stereo speakers
    • Internal 12-watt digital amplifier
    • Headphone/optical digital audio output
    • Audio line input
    • Built-in microphone
  • Wireless Connectivity:
    • Built-in 54 Mbps AirPort Extreme Wi-Fi (802.11g)
    • Built-in Bluetooth 2.0+EDR (Enhanced Data Rate) module
    • Built-in infrared (IR) receiver for Apple Remote
  • Storage:
    • Internal Hard Drive:  250 GB Ultra ATA hard disk drive (7200 RPM)
    • Optical Drive:  8x SuperDrive (DVD+R DL/DVD+RW/DVD-RW/CD-RW)

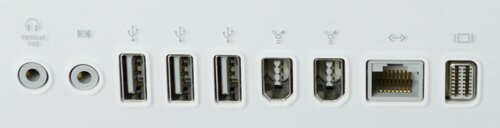

  • Ports:
    • 3 USB 2.0
    • 2 FireWire 400 Mpbs
    • 10/100/1000 Gigabit BASE-T Ethernet (RJ-45 connector)
    • mini-DVI video port
    • Optical digital audio jack
    • Audio line input jack

iMac 2 GHz Intel Core Duo (20-inch) ports
iMac Core Duo Ports

Operating System:
  • Macintosh OS X v10.4 (Tiger) to X v10.6.8 (Snow Leopard)
  • Screen Captures:
    • About This Mac - Mac OS X Version 10.4.11
    • About Finder
    • Desktop
    • Desktop with Dock Mouse Over
    • Macintosh HD Contents
    • System Preferences
    • System Preferences - Display
    • System Preferences - Appearance
    • Calculator
    • Safari - Vectronic's Apple World
    • Safari - Vectronic's Apple World

Keyboard and Mouse:

  • Keyboard:  Apple USB Keyboard
  • Mouse:  Apple Mighty Mouse (USB)
  • Remote:  Apple Remote (magnetically attaches to side)
Physical Dimensions:
  • Size (Inches):  18.6 H x 19.4 W x 7.4 D
  • Weight (Pounds):  22


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
iMac 2 GHz Intel Core Duo (20-inch) n1 iMac 2 GHz Intel Core Duo (20-inch) n2 iMac 2 GHz Intel Core Duo (20-inch) n3 iMac 2 GHz Intel Core Duo (20-inch) n4
iMac 2 GHz Intel Core Duo (20-inch) n5 iMac 2 GHz Intel Core Duo (20-inch) n6 iMac 2 GHz Intel Core Duo (20-inch) n7 iMac 2 GHz Intel Core Duo (20-inch) n8
iMac 2 GHz Intel Core Duo (20-inch) n5 iMac 2 GHz Intel Core Duo (20-inch) n6 iMac 2 GHz Intel Core Duo (20-inch) n7 iMac 2 GHz Intel Core Duo (20-inch) n8
iMac 2 GHz Intel Core Duo (20-inch) n5 iMac 2 GHz Intel Core Duo (20-inch) n6


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
iMac 2 GHz Intel Core Duo (20-inch) o1 iMac 2 GHz Intel Core Duo (20-inch) o2 iMac 2 GHz Intel Core Duo (20-inch) o3 iMac 2 GHz Intel Core Duo (20-inch) o4
iMac 2 GHz Intel Core Duo (20-inch) o5 iMac 2 GHz Intel Core Duo (20-inch) o6


Blue Note Note:  Images showing this iMac used as a video editing workstation
Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
iMac 2 GHz Intel Core Duo (20-inch) p1 iMac 2 GHz Intel Core Duo (20-inch) p2 iMac 2 GHz Intel Core Duo (20-inch) p3 iMac 2 GHz Intel Core Duo (20-inch) p4
iMac 2 GHz Intel Core Duo (20-inch) p5 iMac 2 GHz Intel Core Duo (20-inch) p6 iMac 2 GHz Intel Core Duo (20-inch) p7 iMac 2 GHz Intel Core Duo (20-inch) p8
