PowerBook 165c

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M4990
Blue Arrow Manufacture Date/Year:  1993


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 165c front PowerBook 165c back PowerBook 165c side1 PowerBook 165c side2
PowerBook 165c herol PowerBook 165c heror PowerBook 165c top1 PowerBook 165c top2


Blue Arrow Specifications

Core Unit:

  • Processor:  33 MHz 68030
  • PMMU:  Integrated
  • FPU:  68882
  • RAM:
    • RAM Type:  Pseudostatic RAM (PSRAM, PB1xx)
    • RAM Slots:  1
    • Min - Max RAM:  4 MB - 14 MB
    • Onboard RAM:  4 MB
  • Graphics:
    • Display:
      • 8.9" Color passive-matrix (8-bit, 256 colors) supertwist LCD
    • Resolution (Built-in LCD, 128K static):
      • 640 x 400, 4-bit
    • Resolution External Only (512K VRAM):
      • 512 x 384, 8-bit
      • 640 x 400, 8-bit
      • 640 x 480, 8-bit
      • 800 x 600, 8-bit
      • 832 x 624, 8-bit
  • Audio:
    • Sound Generator:
      • Apple Sound Chip provides 8-bit sound, capable of driving stereo headphones or other stereo equipment through sound port
    • Sound Input:
      • 8-bit, sampled at 11 or 22 KHz
    • Microphone:
      • Built-in omnidirectional; output voltage of 4 mV, peak-to-peak, at normal volume
  • Storage:
    • Internal Hard Drive:  SCSI (80 - 160 MB)
    • Floppy Disk Drive:  1.44 MB manual
  • Ports:
    • DIN-8 RS-422 serial printer port
    • DIN-8 RS-422 serial modem port
    • HDI-30 SCSI port
    • 1 Apple Desktop Bus (ADB) port
    • One slot available for optional RJ-11 modem port (PowerBook Express Modem, 14,400 bps)
    • Video out port
    • Audio out jack
    • Audio in jack

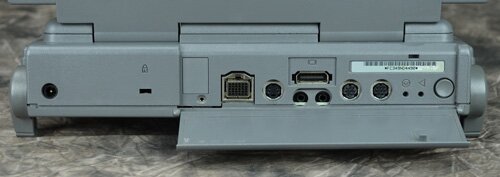

PowerBook 165c ports
PowerBook 165c Ports

Battery:
  • NiCad (Nickel-cadmium)
  • Unit can hold 1 battery
  • 1.5 to 2 hours of continuous use before recharge
Operating System:
  • Classic Macintosh System 7.1 to 7.6.1
  • Screen Captures:
    • About This Macintosh - System Software 7.1
    • Macintosh HD Contents
    • Desktop (Various Folders Contents)
    • PowerBook Display Control Panel
    • PowerBook Control Panel
    • ClarisWorks
    • Memory Control Panel
    • Monitors Control Panel

Keyboard/Pad:

  • Keyboard:  Standard Macintosh layout with two-level tilt adjustment
  • Trackball:  1.25 inches, two buttons
Physical Dimensions:
  • Size (Inches):  2.29 H x 11.25 W x 9.3 D
  • Weight (Pounds):  7


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 165c n1 PowerBook 165c n2 PowerBook 165c n3 PowerBook 165c n4
PowerBook 165c n5 PowerBook 165c n6 PowerBook 165c n7 PowerBook 165c n8
PowerBook 165c n9 PowerBook 165c n10


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
PowerBook 165c o1 PowerBook 165c o2 PowerBook 165c o3 PowerBook 165c o4
PowerBook 165c o5 PowerBook 165c o6
