Magnavox Odyssey 2

	Company:  Philips Magnavox
	Model Number:  BJ/BK7600
	Manufacture Date/Year:  1979

Camera Used:  Nikon D5100 Images Copyright:  Click Here

Specifications

Core Unit:

• Processor:  1.79 MHz Intel 8048
• CPU-Internal RAM:  64 Bytes
• Audio/Video RAM:  128 Bytes
• ROM BIOS:  1024 Bytes
• Video Graphics:
  • Intel 8244 (NTSC)
  • 160 × 200 resolution (NTSC)
  • 16-color fixed palette; sprites may only use 8 of these colors
  • 4 8 × 8 single-color user-defined sprites
  • 12 8 × 8 single-color characters
  • 4 quad characters; groups of four characters displayed in a row
  • 9 × 8 background grid; dots, lines, or solid blocks
• Audio:
  • Intel 8244/8245 custom IC
  • Mono
  • 24-bit shift register, clockable at 2 frequencies
  • Noise generator

• 2 permanently attached one-button joystick controllers (8 directions)
• 48-key, QWERTY membrane keyboard

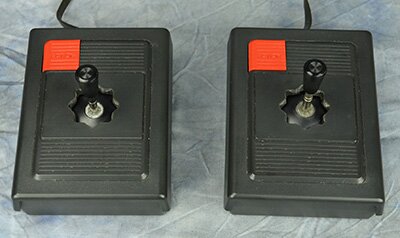

Odyssey 2 Controllers

• ROM Cartridge (2K, 4K, or 8K in size)

Typical Game Cartridge

• Size (Inches):  4.25 H x 13.25 W x 13 D

Camera Used:  Nikon D5100 Images Copyright:  Click Here

Camera Used:  Nikon D5100 Images Copyright:  Click Here
