Macintosh Color Classic

Blue Arrow Company:  Apple Inc. (Apple Computer, Inc.)
Blue Arrow Model Number:  M1600
Blue Arrow Manufacture Date/Year:  May 1993


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Macintosh Color Classic front Macintosh Color Classic back Macintosh Color Classic side1 Macintosh Color Classic side2
Macintosh Color Classic herol Macintosh Color Classic heror Macintosh Color Classic top1 Macintosh Color Classic top2


Blue Arrow Specifications

Core Unit:

  • Processor:  16 MHz 68030
  • RAM:  4 MB to 10 MB (4 MB onboard)
  • Graphics:
    • Standard VRAM:  256K (Built-in)
    • Maximum VRAM:  512K (1 x 256K)
    • 512 x 384, 8-bit (256K Built-in), 16-bit (1 x 256K)
    • Built-in 10-inch Sony Trinitron RGB display
  • Audio:
    • Microphone:  Built-in omnidirectional electret microphone
    • Sound Generator:  Monophonic 8-bit digital analog conversion, with 22 kHz sample rate capable of driving stereo headphones or other stereo equipment through the sound jack
    • One small built-in speaker
  • Built-in Drives:
    • One 1.4 MB 3.5-inch floppy disk drive
    • One internal 80 MB or 160 MB SCSI hard drive
  • Expansion:
    • No internal expansion bays
    • One LC PDS (processor direct slot)
  • Ports:
    • DIN-8 RS-422 serial printer port
    • DIN-8 RS-422 serial modem port
    • DB-25 SCSI port
    • Two Apple Desktop Bus (ADB) port
    • Audio out
    • Audio in

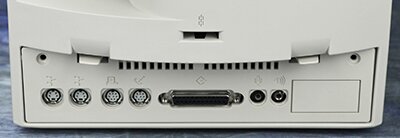

Macintosh Color Classic ports
Macintosh Color Classic Ports

Keyboard and Mouse:

  • Keyboard:  ADB
  • Mouse:  ADB

Operating System:

  • Classic Macintosh System 7.1 to 7.6.1
Physical Dimensions:
  • Size (Inches):  14.5 H x 9.9 W x 12.6 D
  • Weight (Pounds):  22.5


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Macintosh Color Classic n1 Macintosh Color Classic n2
