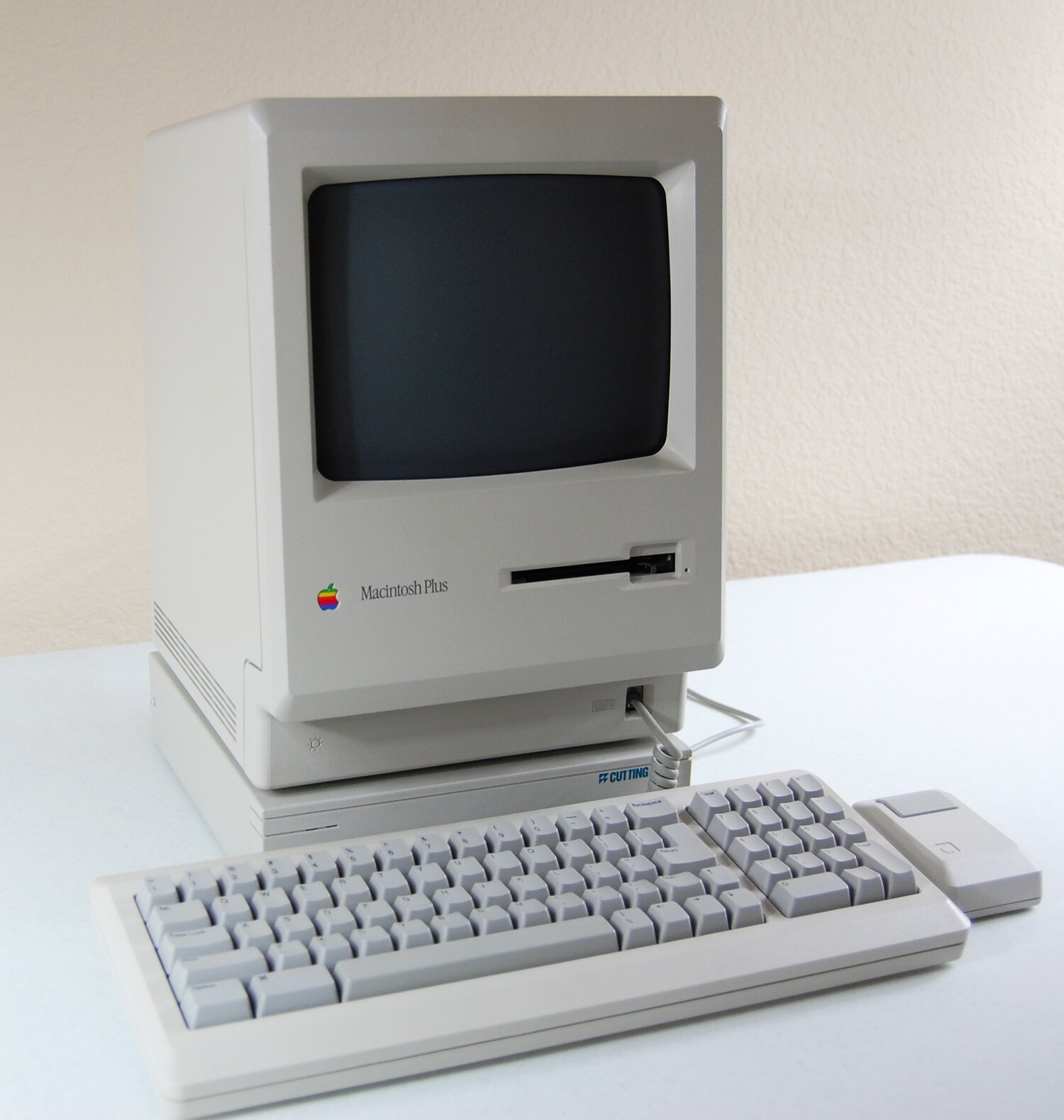

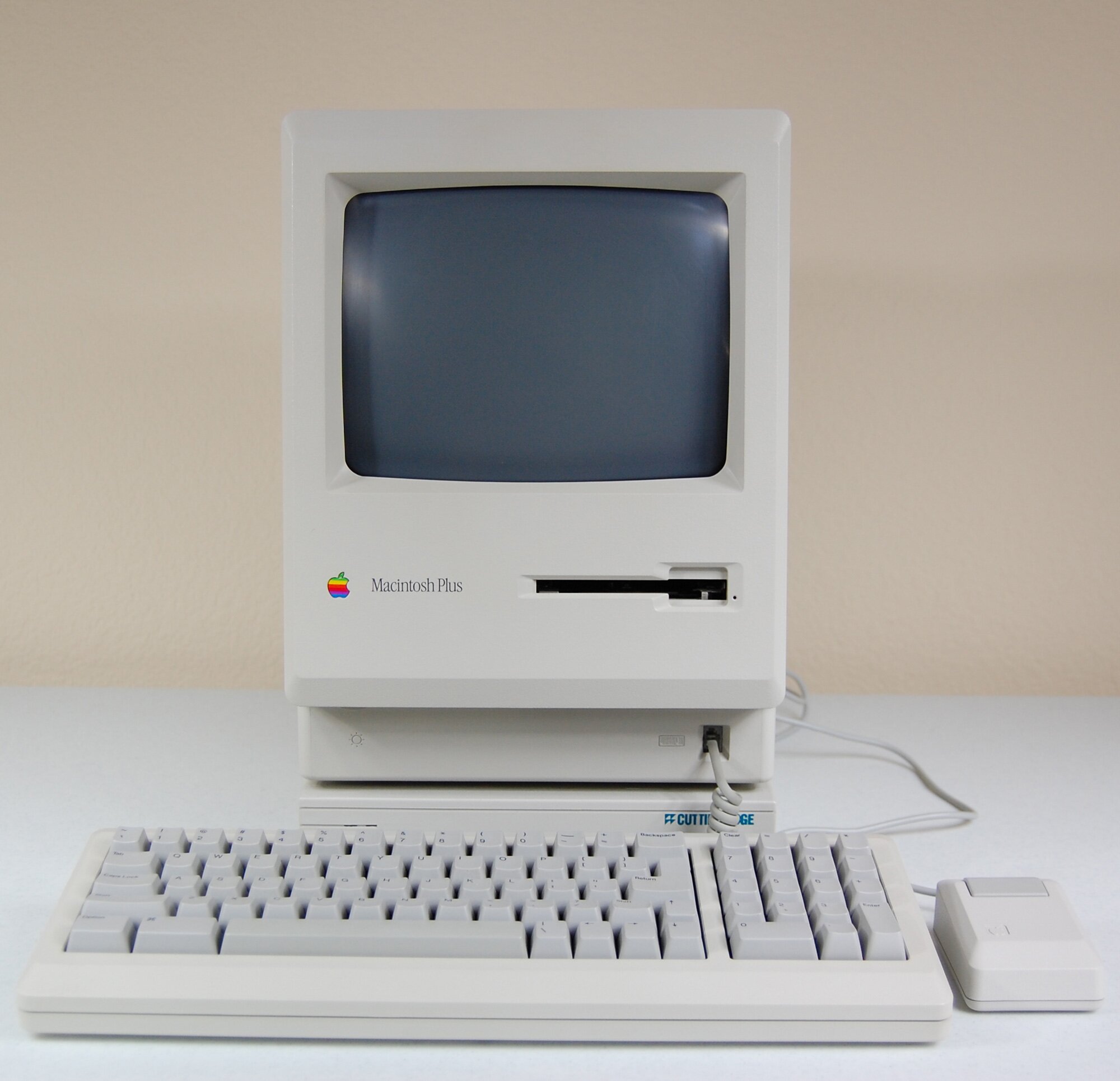

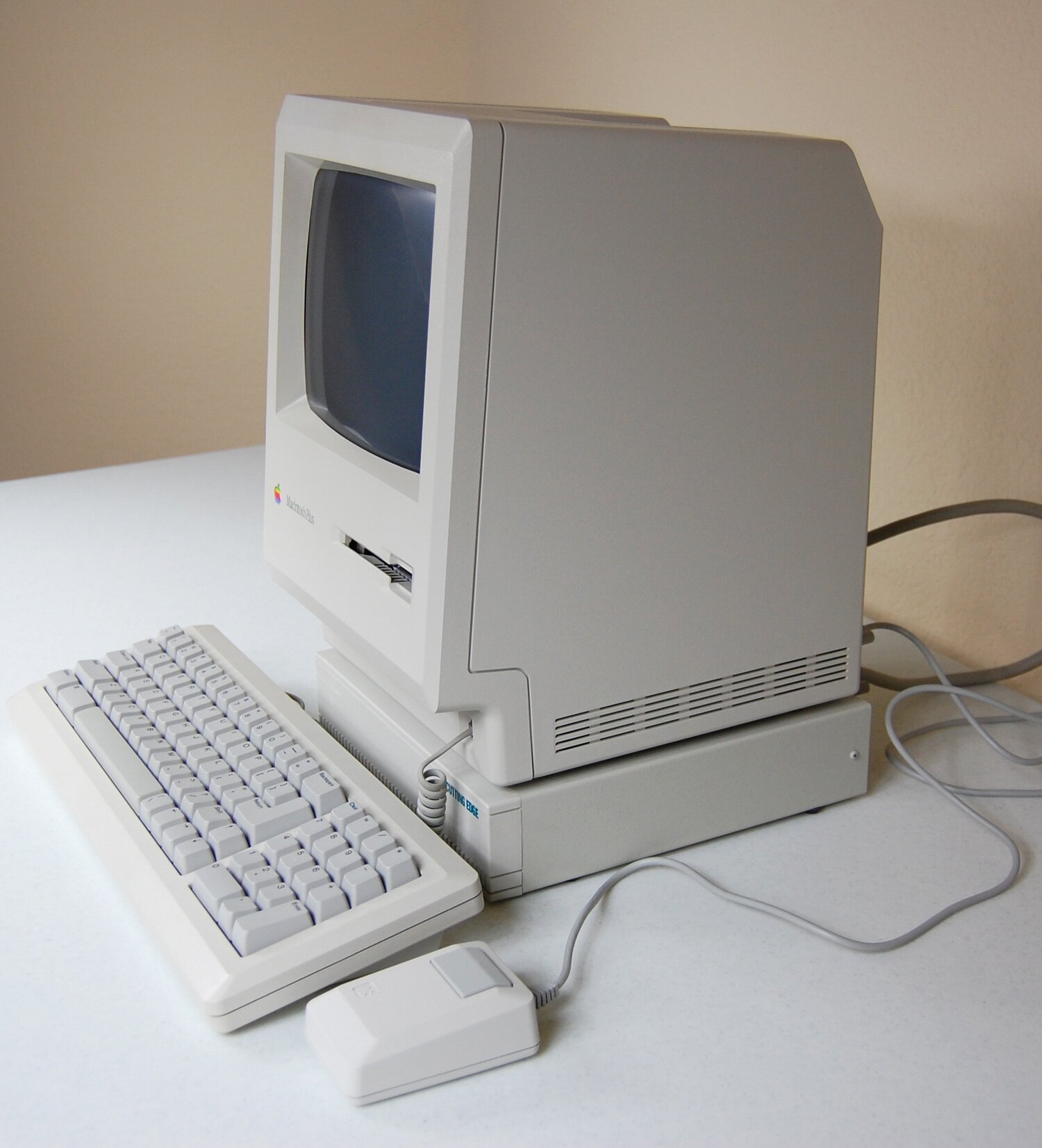

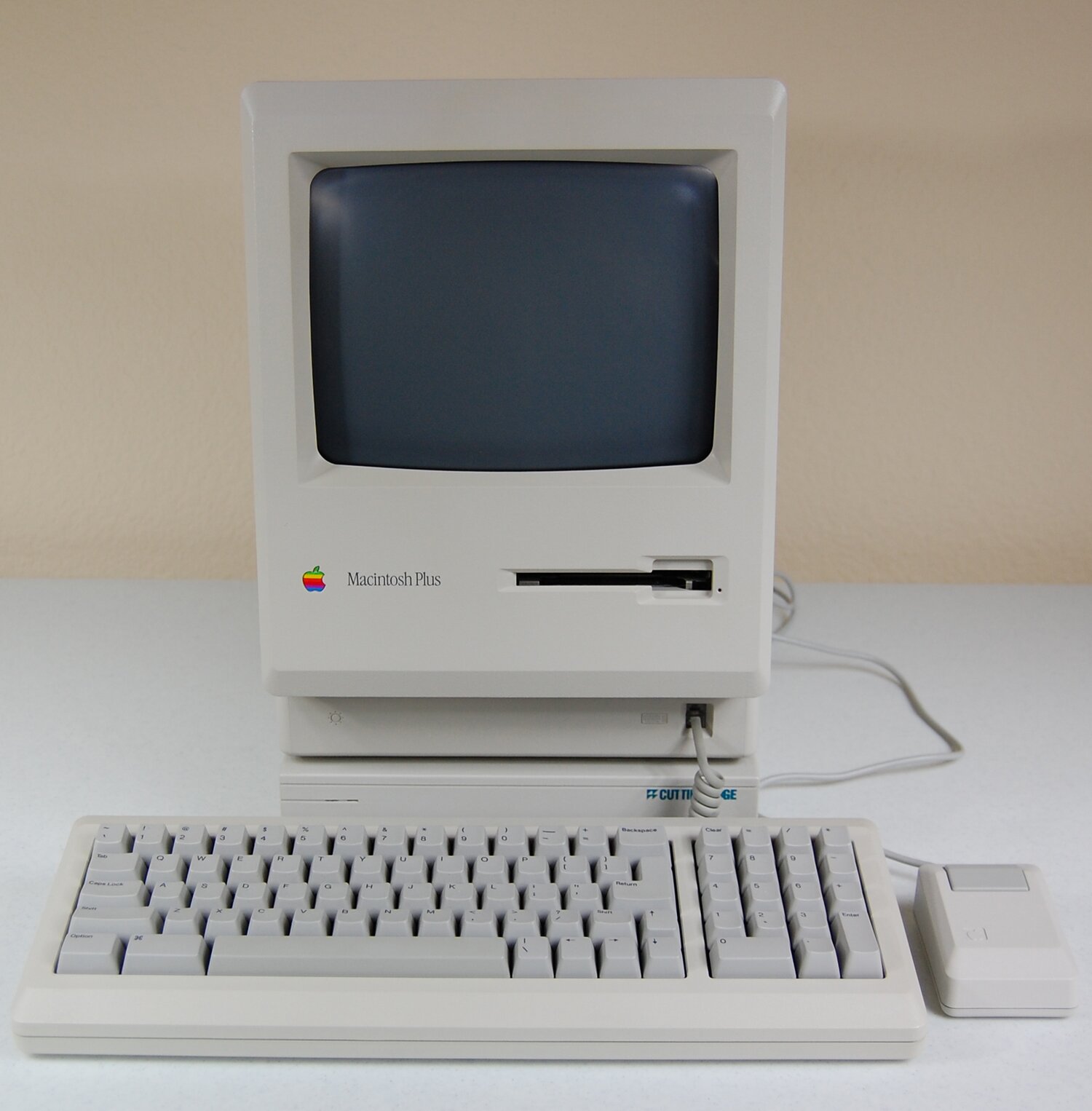

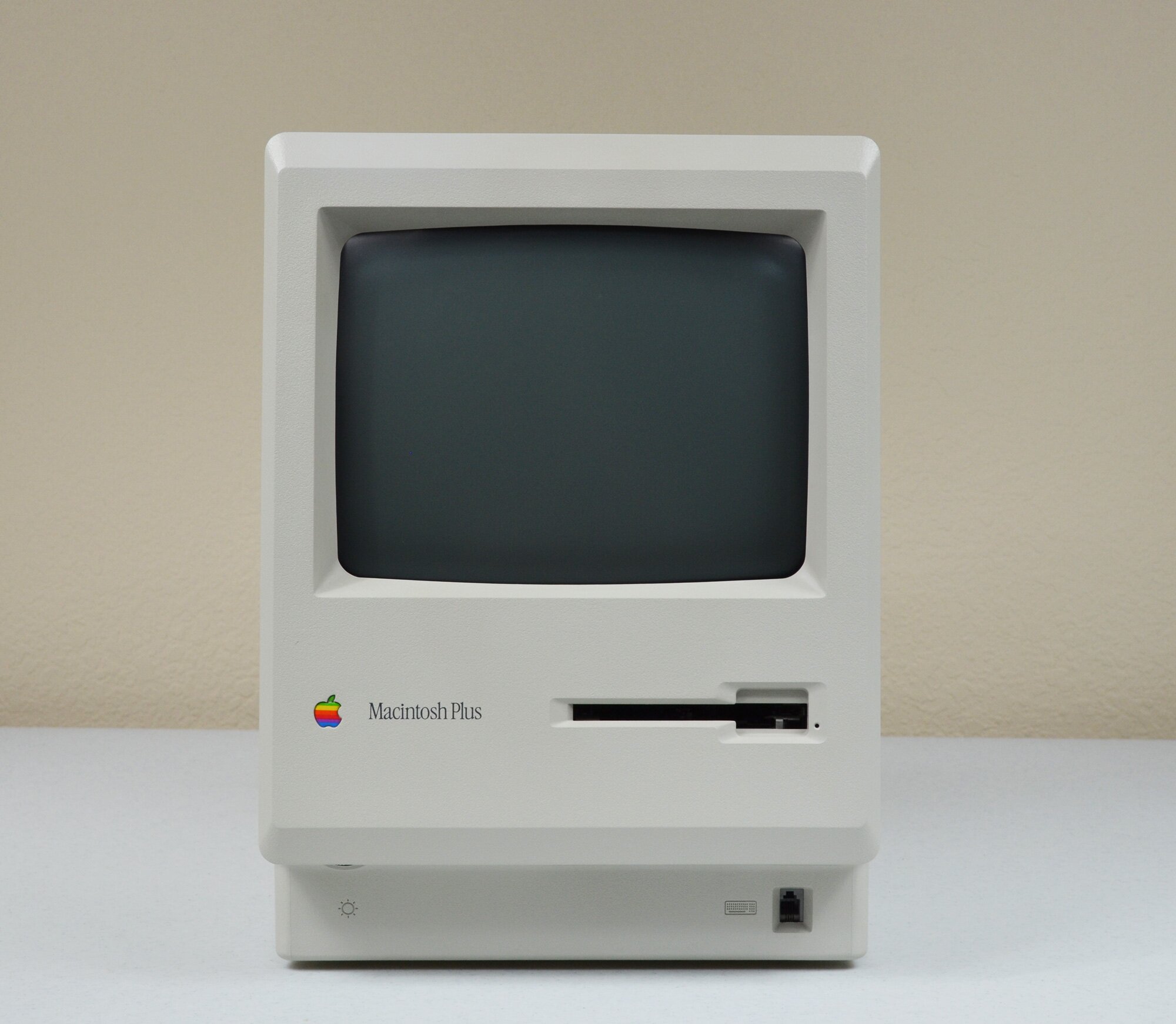

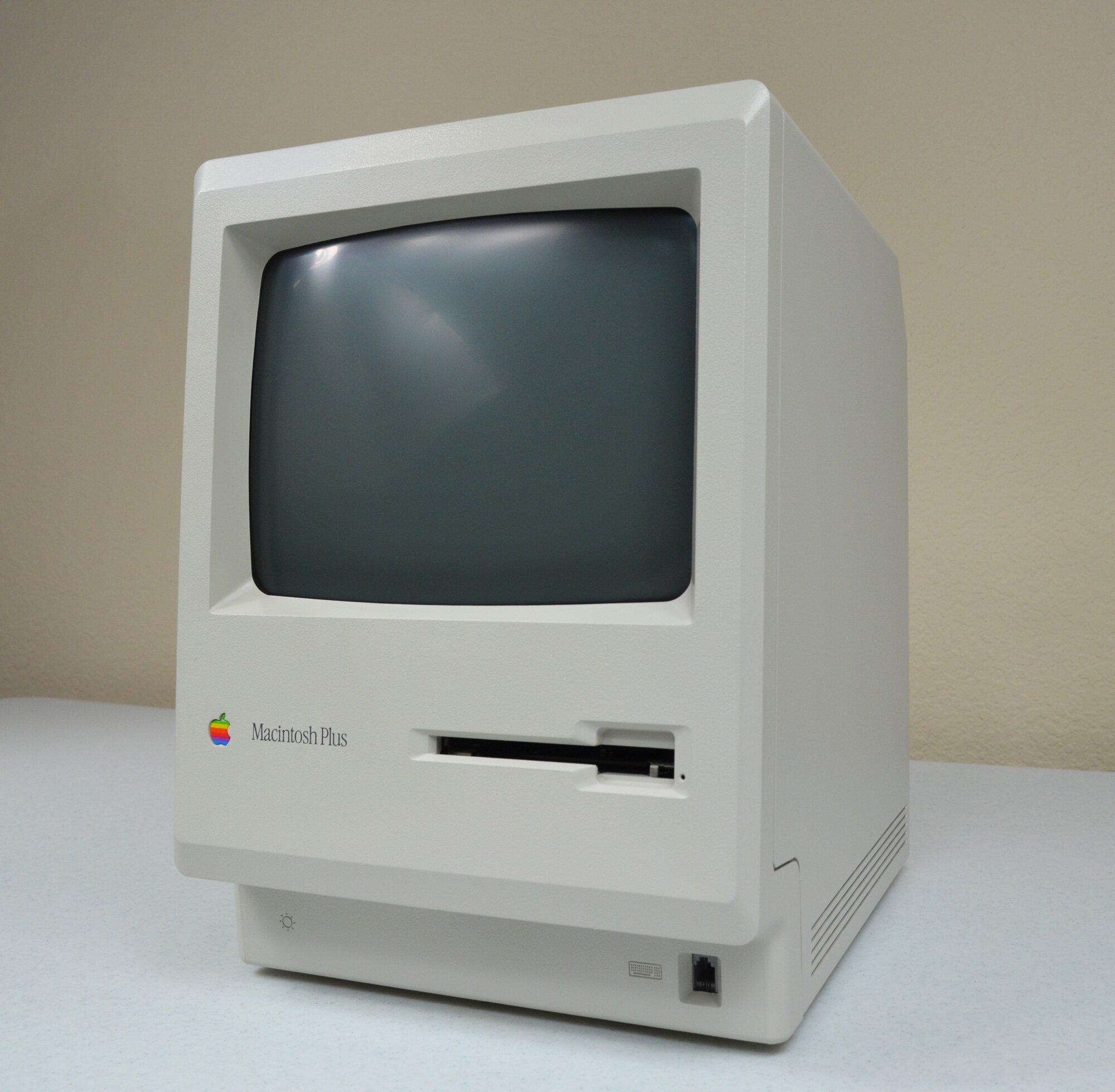

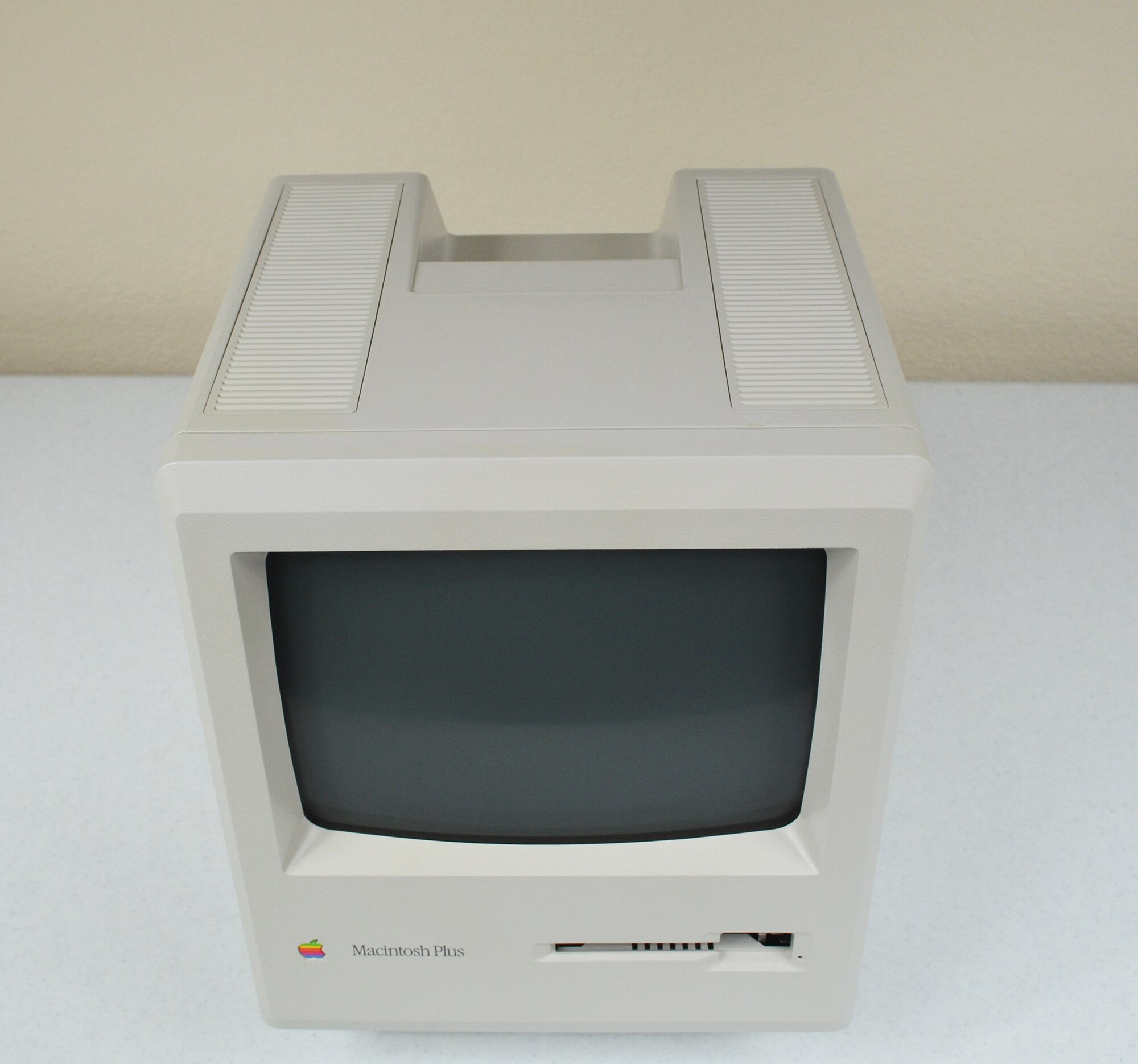

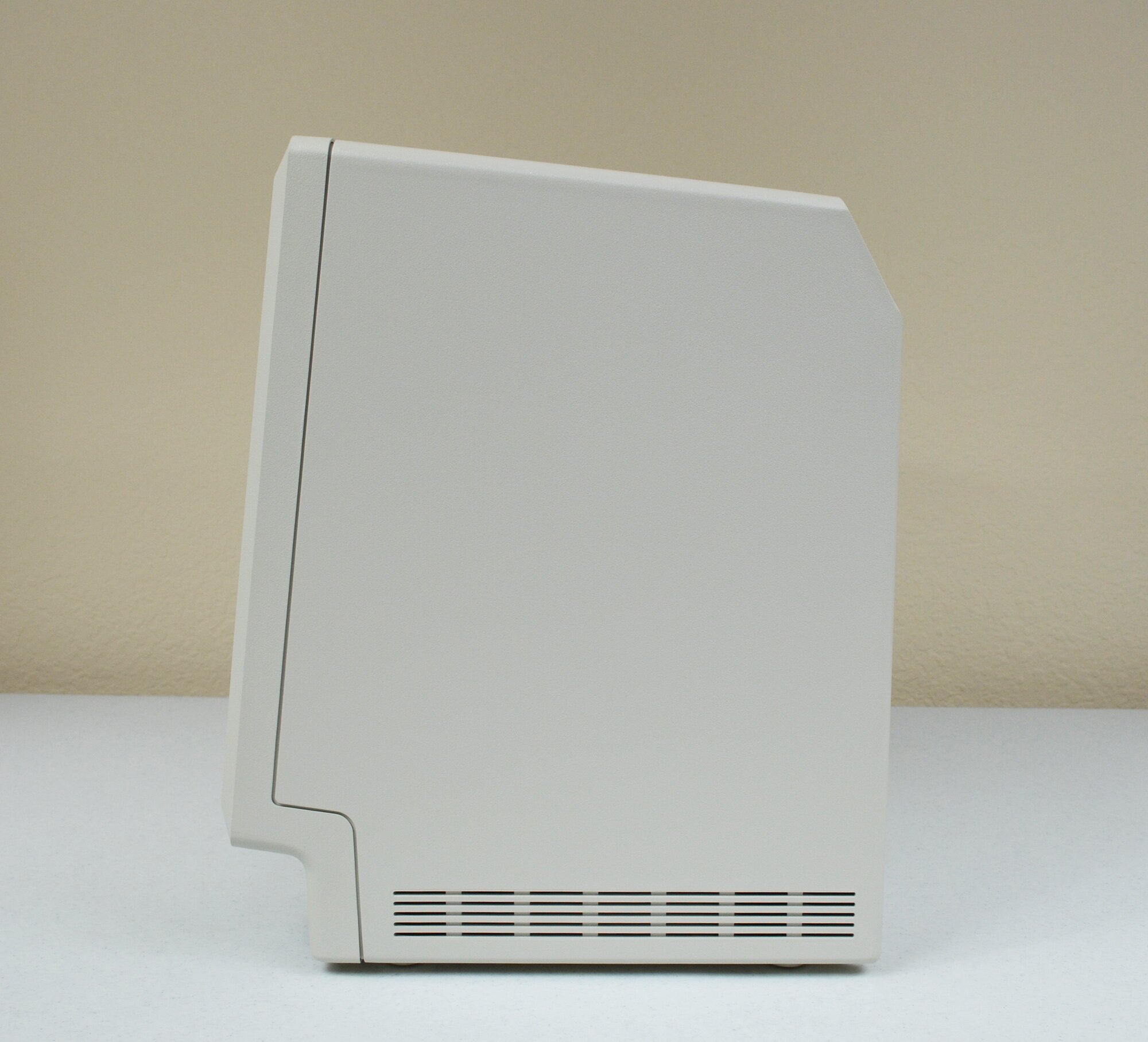

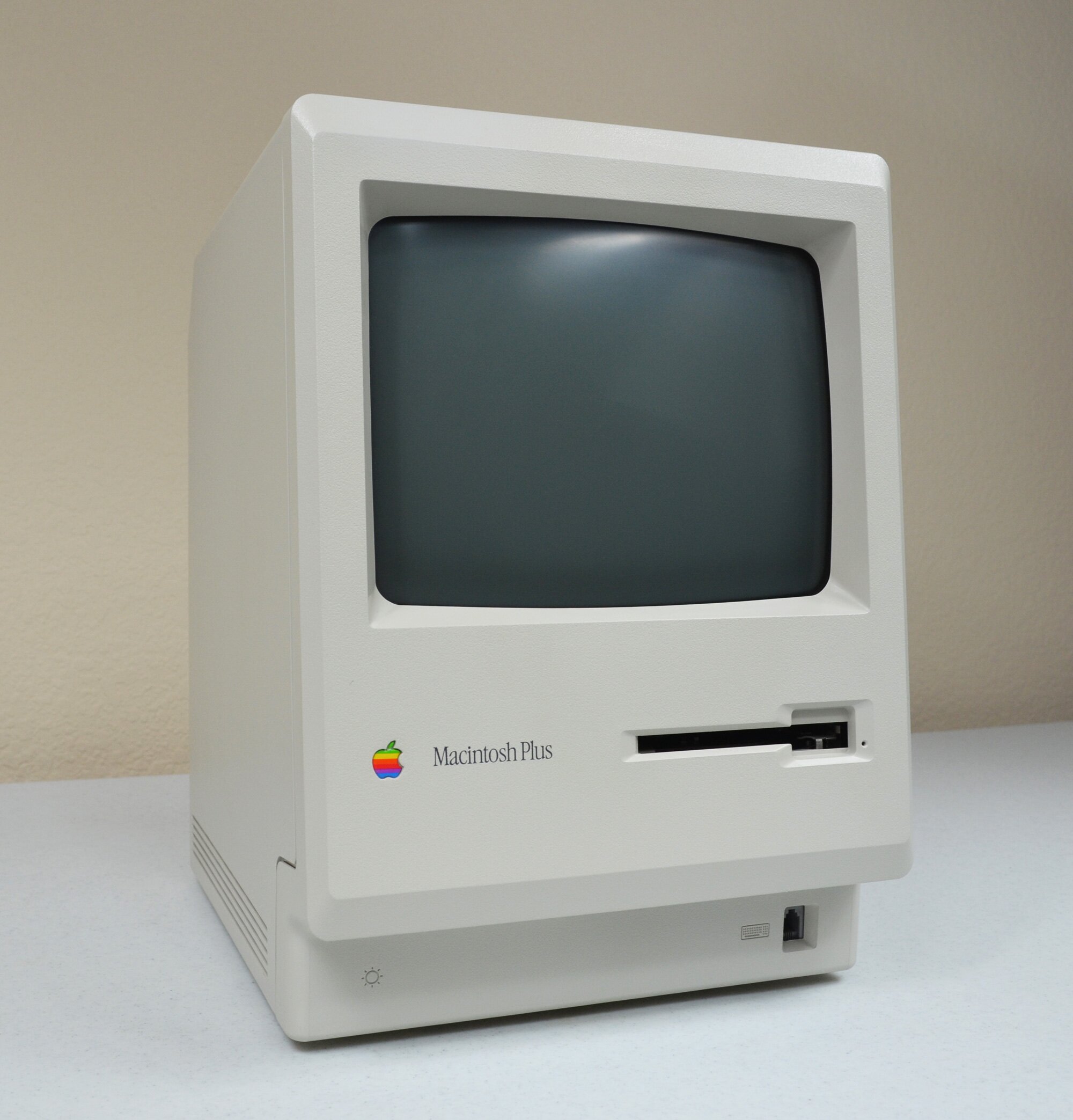

Macintosh Plus (Platinum, 1 MB)

	Company:  Apple Inc. (Apple Computer, Inc.)
	Model Number:  M0001A
	Manufacture Date/Year:  1987

Camera Used:  Nikon D5100 Images Copyright:  Click Here

Specifications

Core Unit:

• Processor:  8 MHz 68000
• RAM:  1 MB (expandable to 4 MB)
• Graphics:
  • Built-in, 512 x 384, 1-bit
  • Screen size is 9-inch
  • Capable of black and white pixels only
• Built-in Drives:

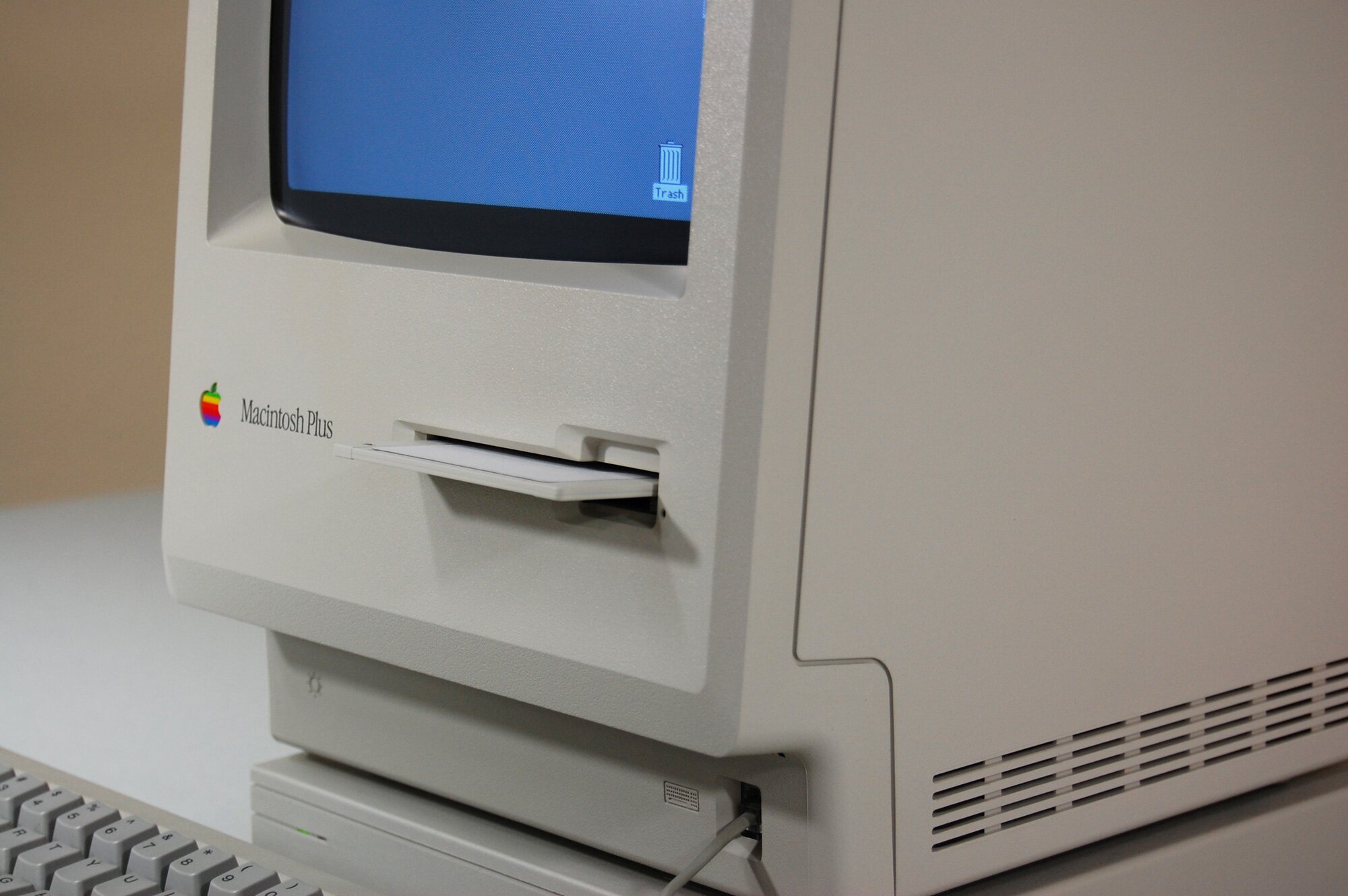

  • 800K 3.5-inch double-sided floppy
  • No internal hard disk

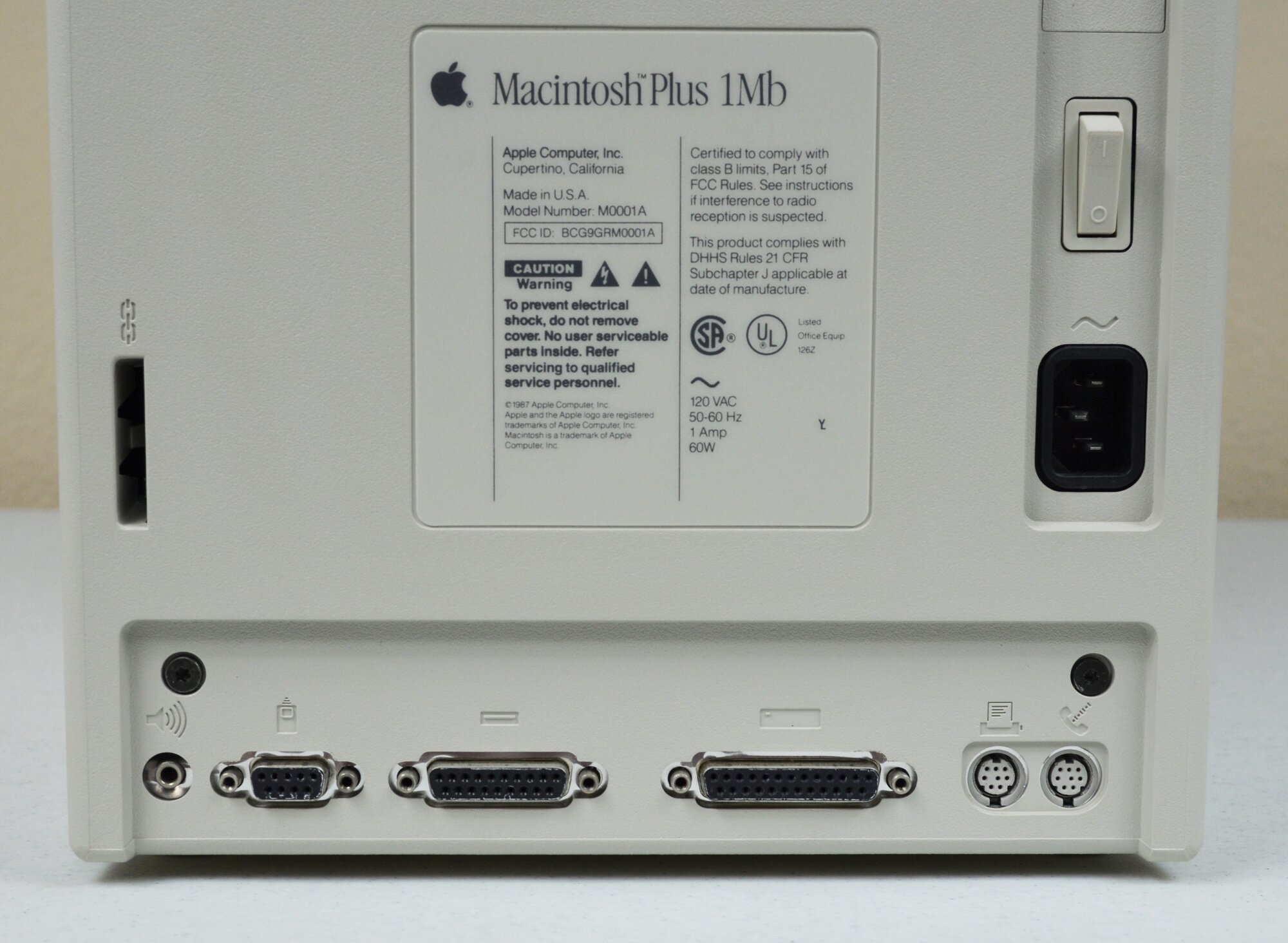

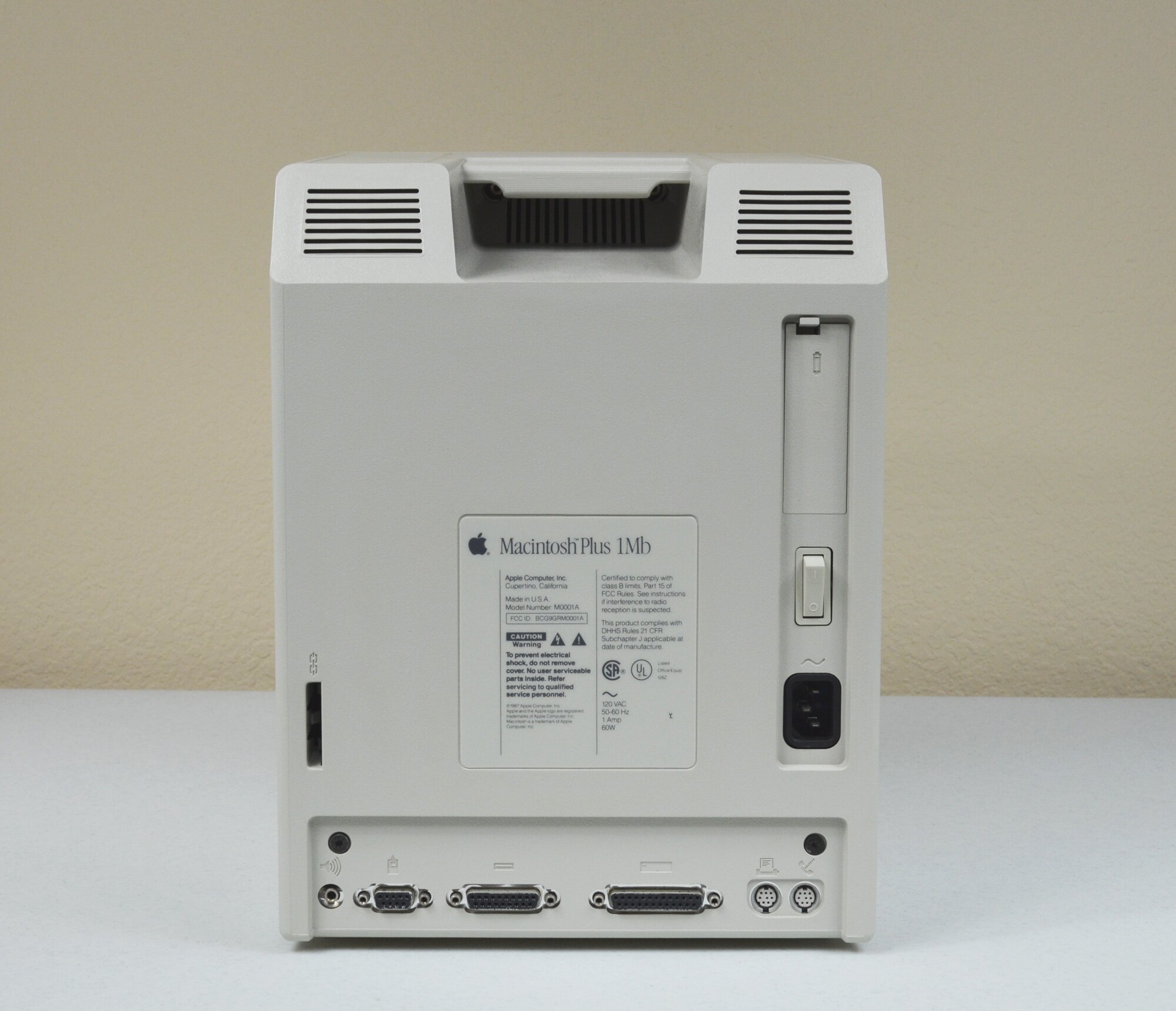

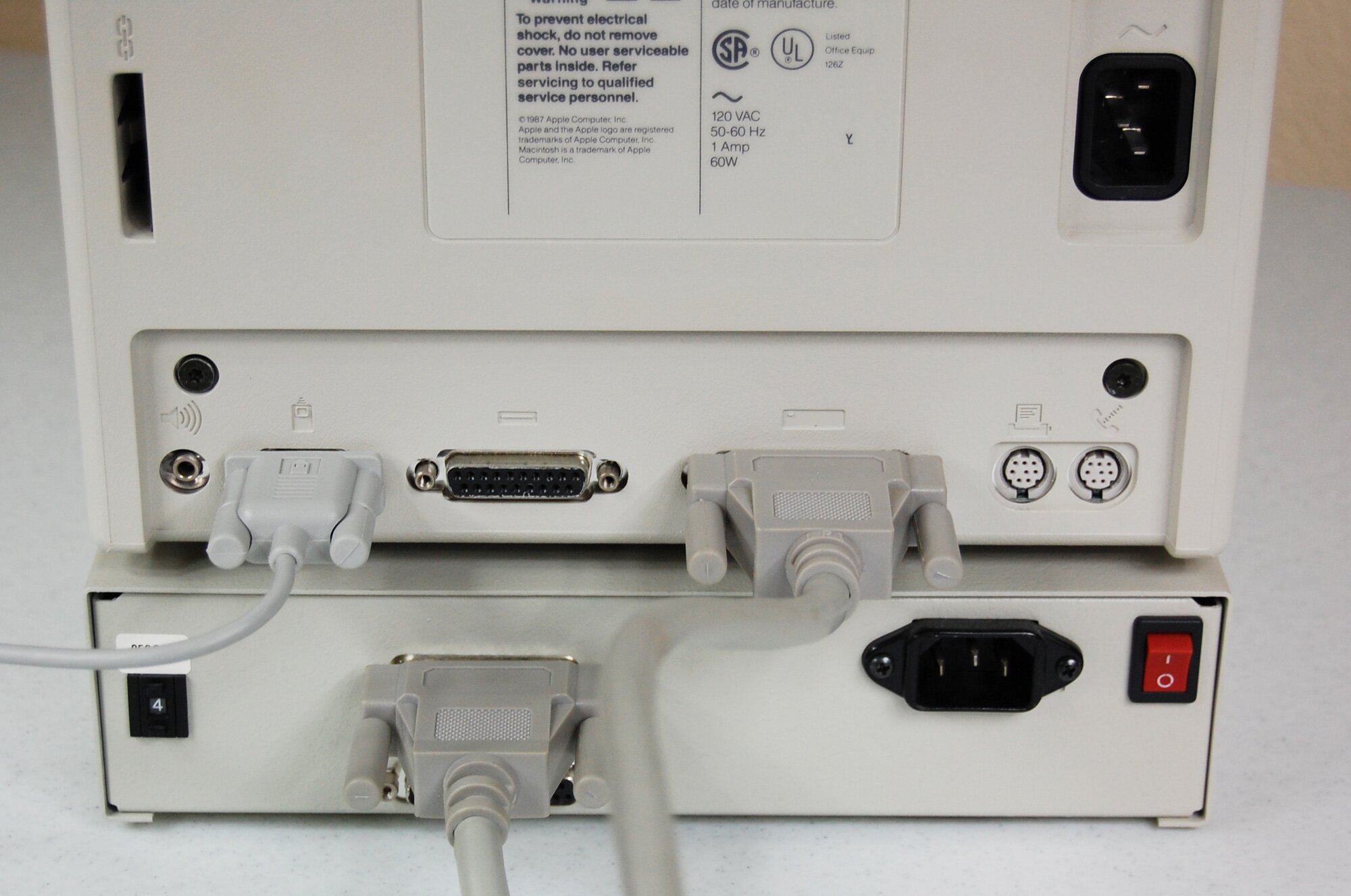

• Ports:
  • External 800K floppy disk port
  • DIN-8 RS-422 serial printer port
  • DIN-8 RS-422 serial modem port
  • SCSI port
  • DB-9 mouse port
  • Audio out
  • Keyboard (connection on front)

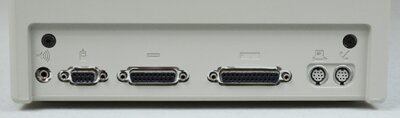

Macintosh 512K Ports

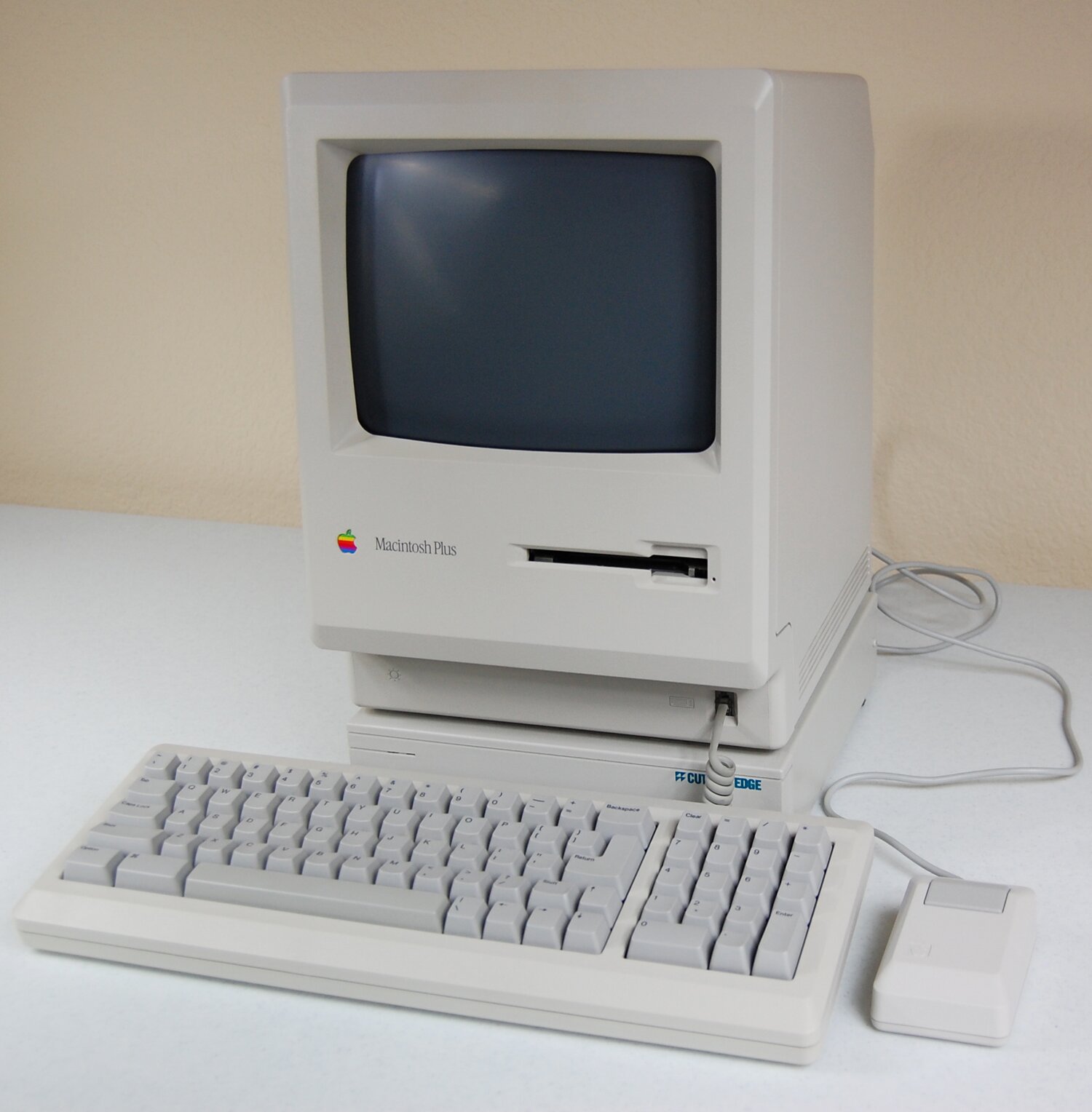

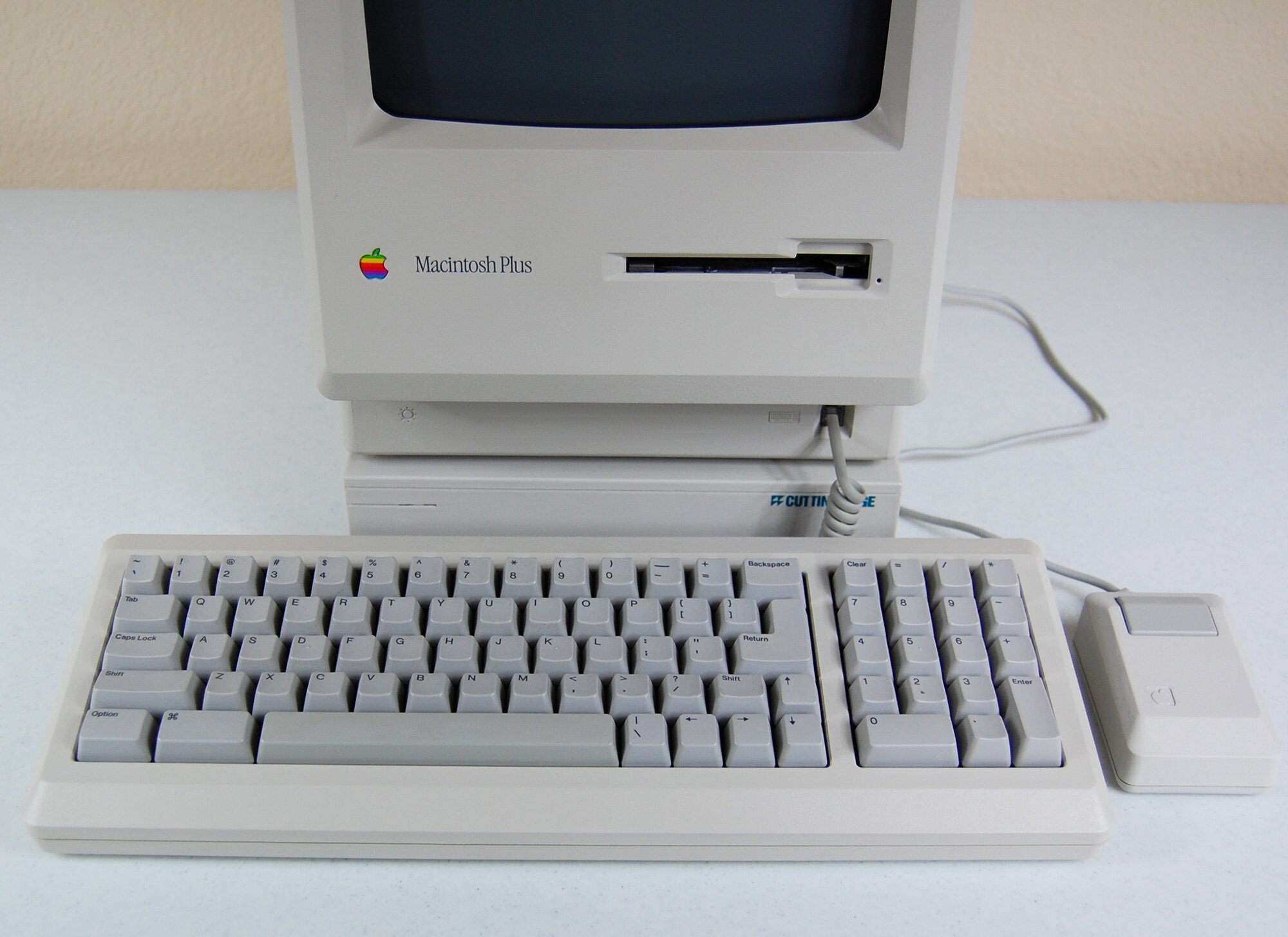

Keyboard and Mouse:

• Keyboard:  Proprietary connector similiar to RJ-11
• Mouse:  DB-9

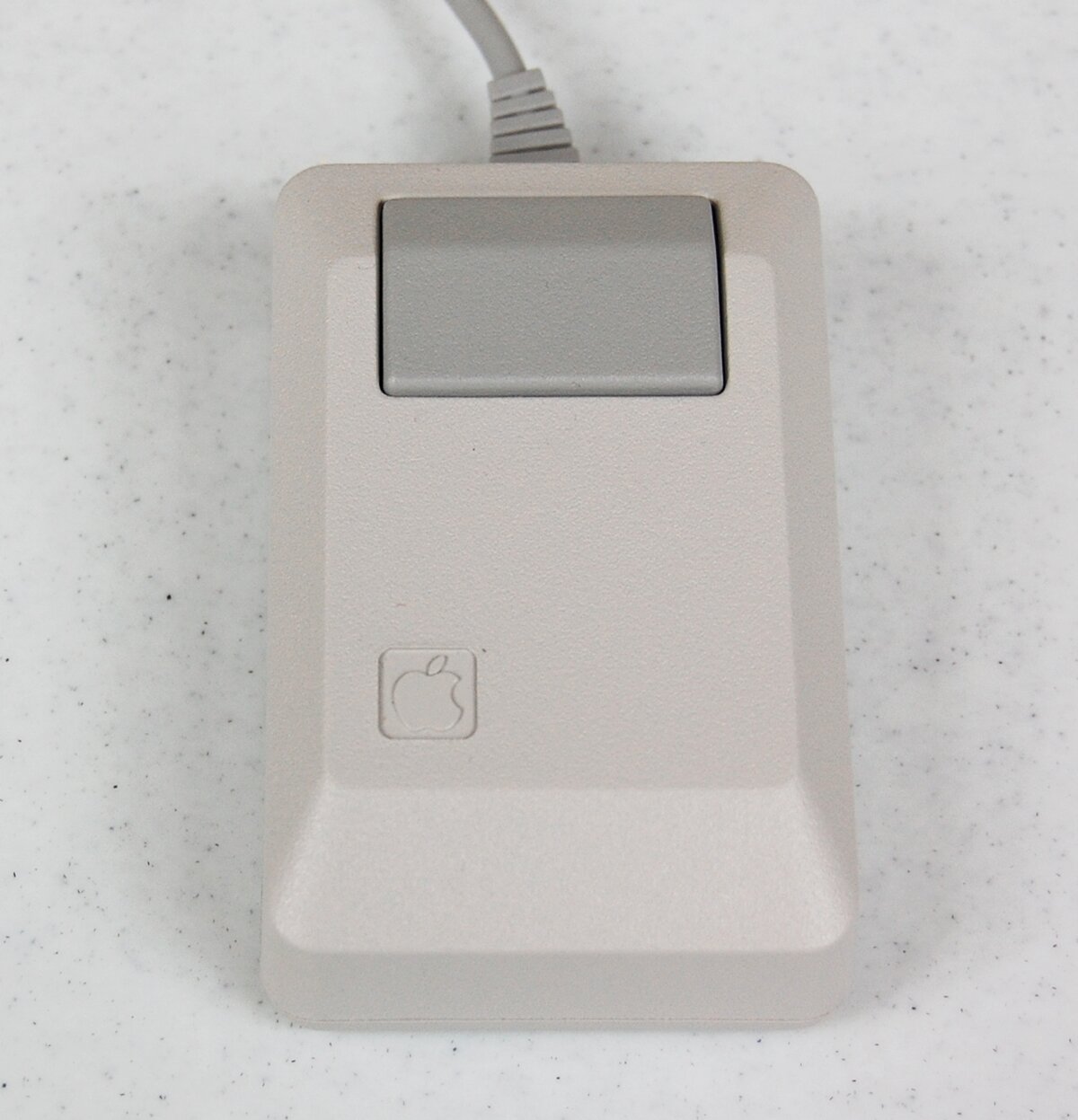

DB-9 Mouse

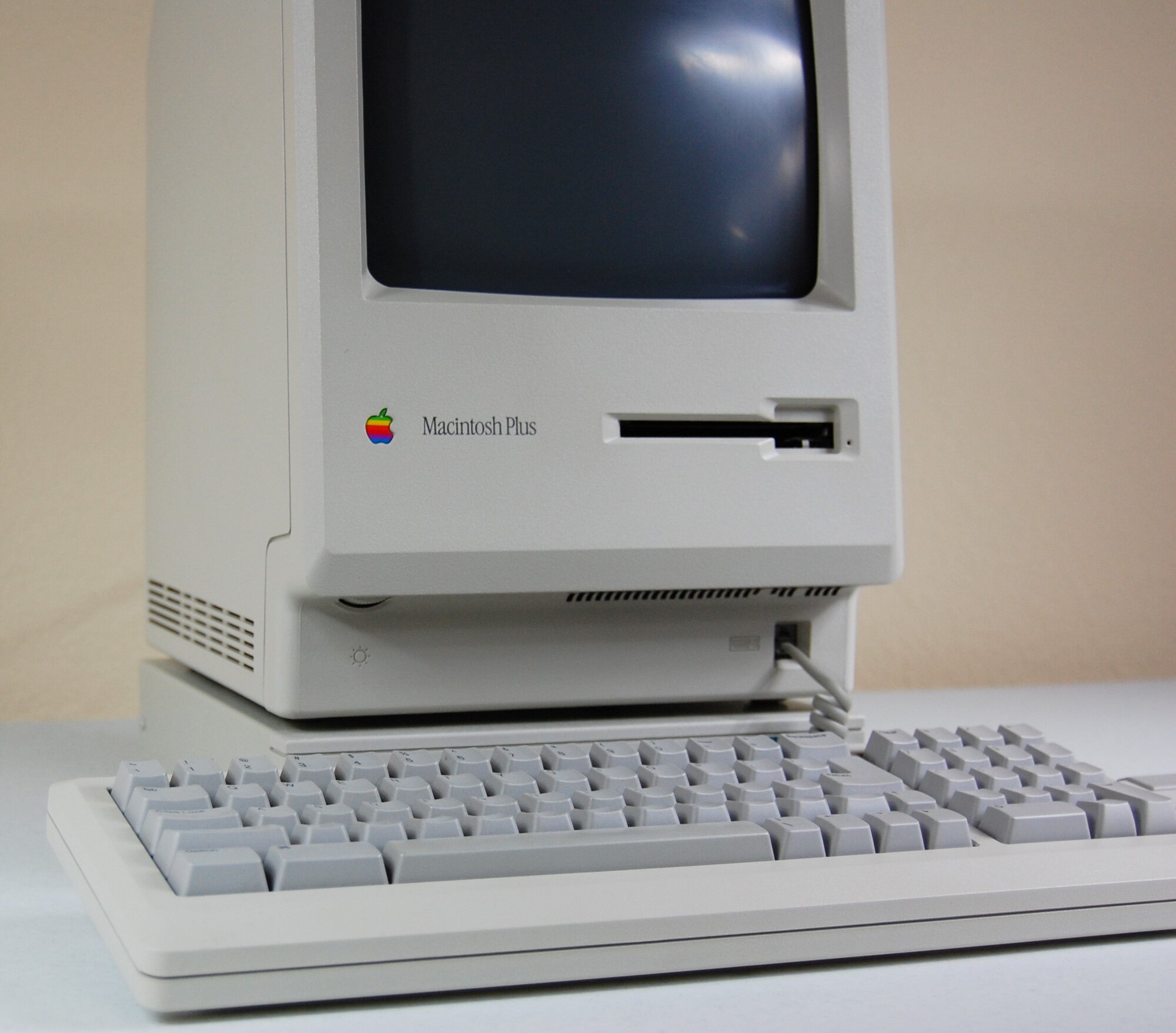

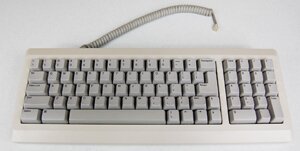

Keyboard

• Classic Macintosh System 3.2 (System 3.0 and Finder 5.1) to 7.5.5
• Screen Captures:

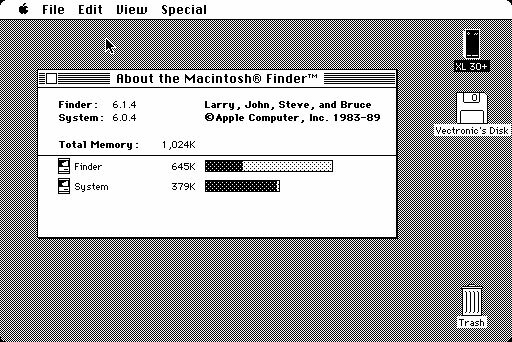

  • System 6.0.4 Finder 6.0.4 About

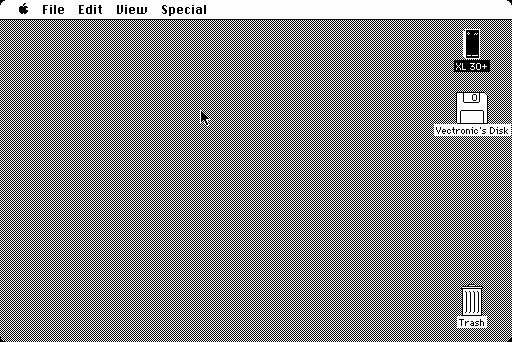

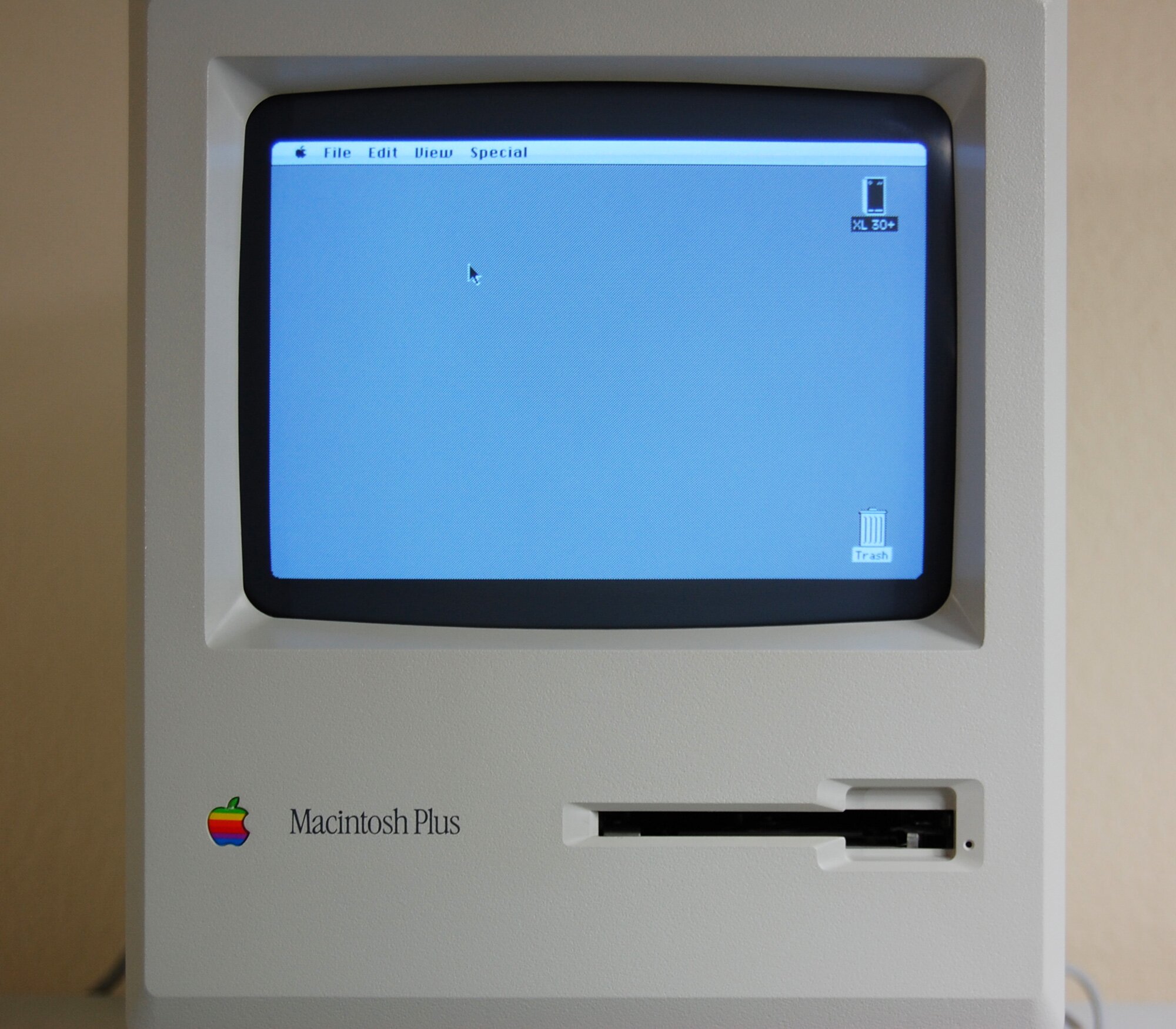

  • Desktop

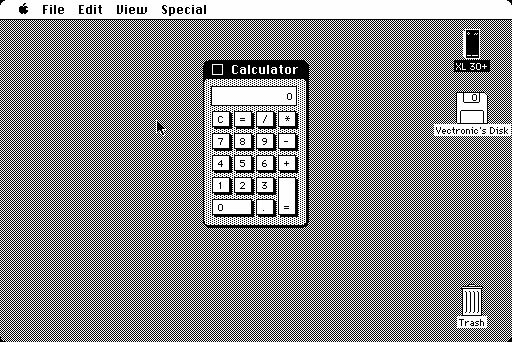

  • Calculator

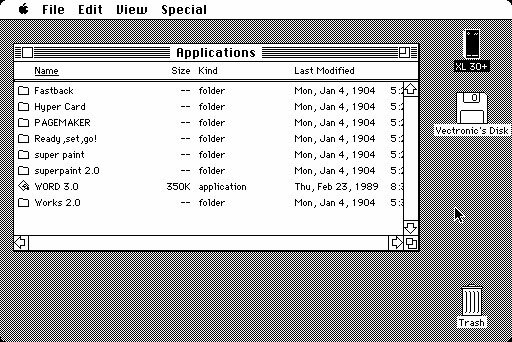

  • Applications Folder

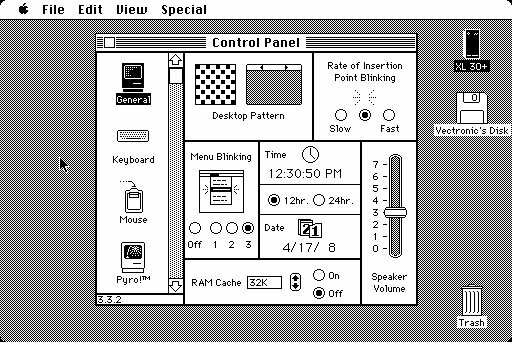

  • Control Panel General

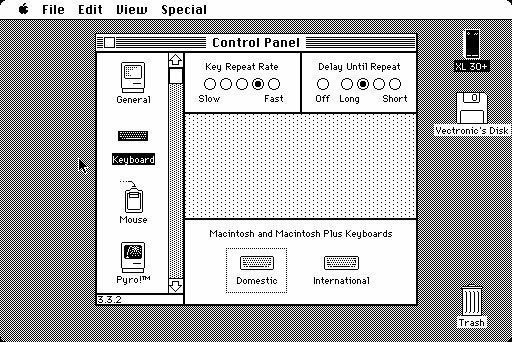

  • Control Panel Keyboard

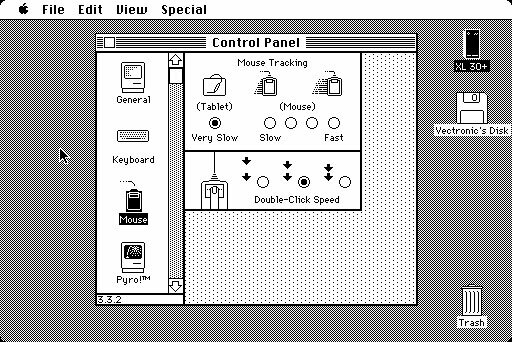

  • Control Panel Mouse

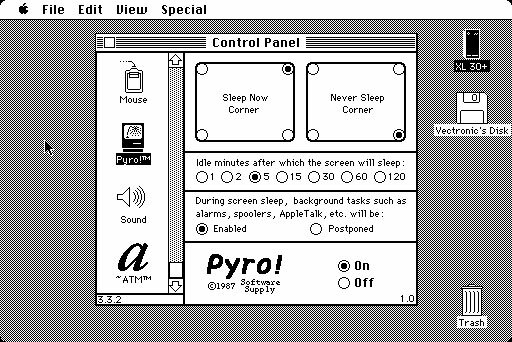

  • Control Panel Screen Saver

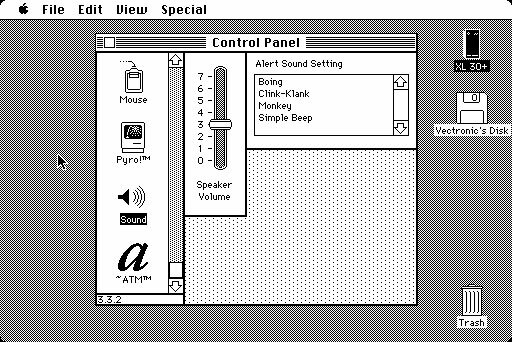

  • Control Panel Sound

• Size (Inches):  13.6 H x 9.6 W x 10.9 D
• Weight (Pounds):  16.5
