Atari 2600 Jr. (Small Rainbow)

Blue Arrow Company:  Atari, Inc
Blue Arrow Model Number:  Atari 2600 (Jr. or Junior)
Blue Arrow Manufacture Date/Year:  1986
Blue Download Front Box Scan:  Click Here (Copyright)
Blue Download Back Box Scan:  Click Here (Copyright)
Blue Download Instructions Page 1 Scan:  Click Here (Copyright)
Blue Download Instructions Page 2 Scan:  Click Here (Copyright)


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here

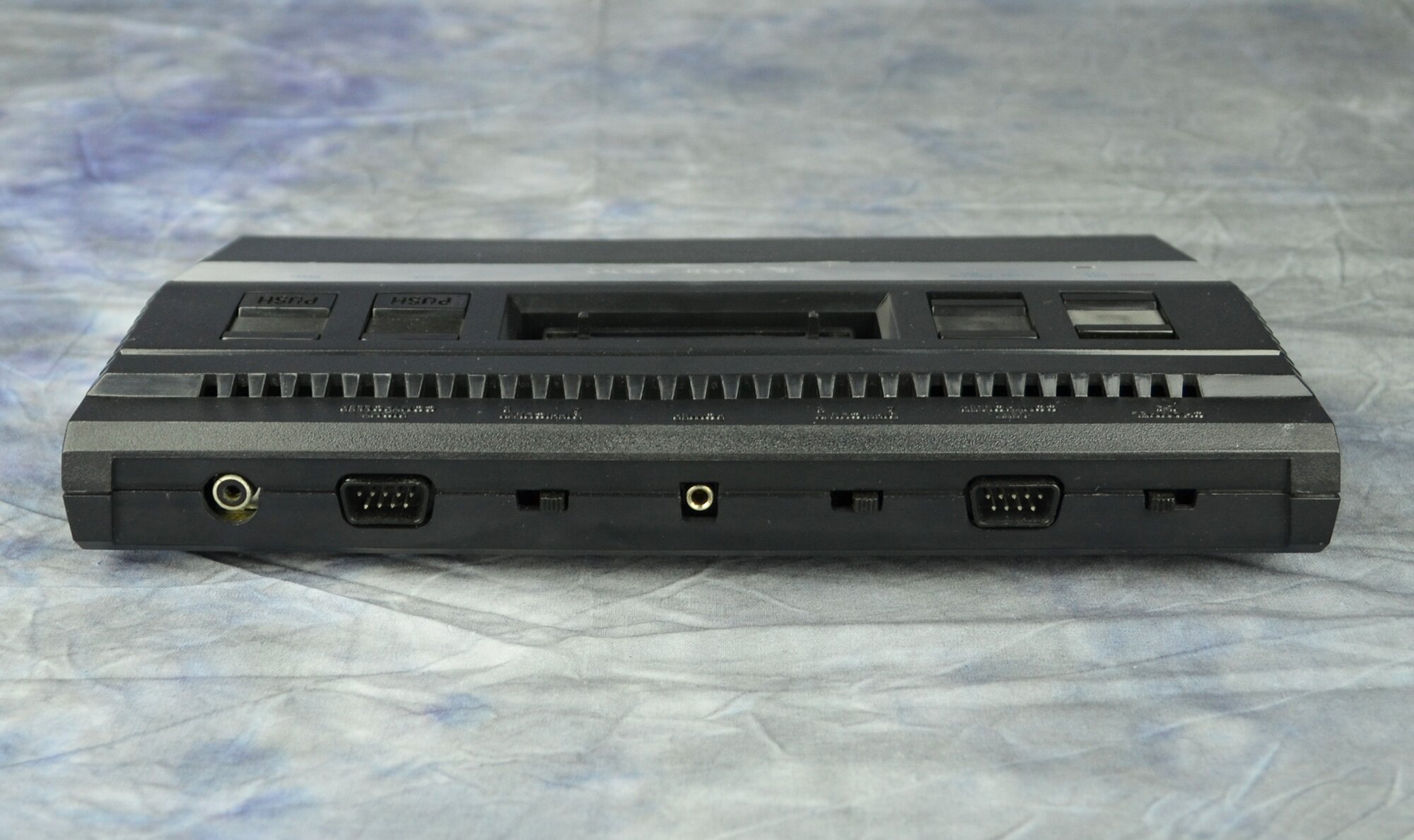

Atari 2600 Jr front Atari 2600 Jr back Atari 2600 Jr side1 Atari 2600 Jr side2
Atari 2600 Jr herol Atari 2600 Jr heror Atari 2600 Jr top1 Atari 2600 Jr top2


Blue Arrow Specifications

Core Unit:

  • Processor:  1.19 MHz MOS Technology 6507
  • RAM:  128 Bytes (additional RAM may be included in game cartridge)
  • Graphics:
    • Television Interface Adaptor Model 1A (TIA 1A or "Stella")
    • Playfield resolution: 40 x 192 pixels
    • Maximum resolution: 160 x 192 pixels
    • 128 colors (NTSC), max of 4 per line
  • Controller Ports:  2
Standard Controllers:
  • Atari DE-9 One-Button Joystick



Atari 2600 Jr Controller
Atari Controller

Game Format:
  • ROM Cartridge (1K to 4K in size)

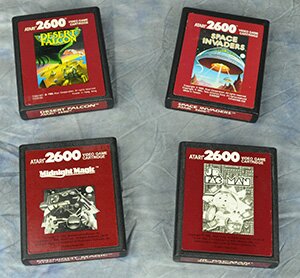

Atari 2600 Jr Cartridge
Typical Game Cartridges

Physical Dimensions:
  • Size (Inches):  1.5 H x 10.5 W x 6.5 D


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Atari 2600 Jr n1 Atari 2600 Jr n2 Atari 2600 Jr n3 Atari 2600 Jr n4
Atari 2600 Jr n5 Atari 2600 Jr n6 Atari 2600 Jr n7


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Atari 2600 Jr o1 Atari 2600 Jr o2 Atari 2600 Jr o3 Atari 2600 Jr o4
Atari 2600 Jr o5 Atari 2600 Jr o6 Atari 2600 Jr o7 Atari 2600 Jr o8
