Atari XE Game System (XEGS)

Blue Arrow Company:  Atari, Inc
Blue Arrow Model Number:  XEGS
Blue Arrow Manufacture Date/Year:  1987


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Atari XE Game System XEGS front Atari XE Game System XEGS back Atari XE Game System XEGS side1 Atari XE Game System XEGS side2
Atari XE Game System XEGS herol Atari XE Game System XEGS heror Atari XE Game System XEGS top1 Atari XE Game System XEGS top2


Blue Arrow Specifications

Core Unit:

  • Processor:  1.79 MHz MOS Technology 6502C
  • RAM:  64K onboard
  • Graphics:
    • "ANTIC" Graphics Processor
      • Graphic Television Interface Adaptor (GTIA) provides color playfield and generates sprites
      • Text: 24 x 40 characters
      • Maximum monochrome resolution: 320 x 192 pixels
      • Maximum color resolution: 160 x 96 pixels
      • 256 color palette (16 on-screen)
      • 8 sprites
  • Sound:
    • "POKEY" Chip
      • 4 voices (semi-independent 8-bit channels)
      • Two channels can be combined for more accurate sound (16-bit)
  • Ports:
    • 2 Controller ports
    • 1 Keyboard port
    • 1 RF output to TV
    • 1 Composite output to monitor
    • 1 audio out jack
    • 1 SCIO peripheral port (tape, disk, printer, modem)
Keyboard:
  • Detachable keyboard (57 keys)
  • Round "Help" button at the top
Standard Controllers:
  • Atari DE-9 One-Button Joystick
  • Atari DE-9 XG-1 Light Gun



Atari XE Game System XEGS Controller
Atari XEGS Joystick Controller



Atari XE Game System XEGS Controller

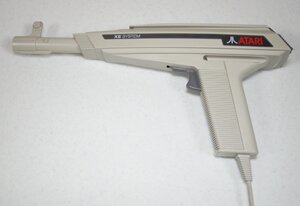

Atari XEGS XG-1 Light Gun

Game Format:
  • ROM cartridge (one built-in ROM cartridge slot)
  • Shipped with Bug Hunt and Flight Simulator II ROM cartridges
  • Missle Command game built into system ROM
  • Compatible with Atari 800/400 ROM cartrigdes
  • Cassette tape (external compatible cassette tape recorder needed)
  • 5.25-inch floppy disk (external compatible floppy disk drive needed)



Atari XE Game System XEGS Bug Hunt
Bug Hunt Game Cartridge



Atari XE Game System XEGS Flight Simulator II

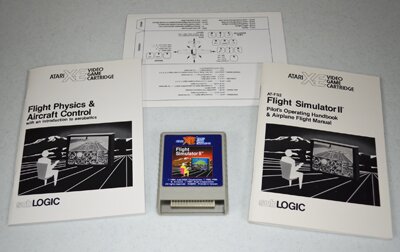

Flight Simulator II Game Cartridge

Operating System:
  • Atari OS Rev. 4 (32K ROM)
    • XEGS Manager
    • Built-in Atari BASIC (8K)
    • Built-in Self Test
    • Built-in Missle Command game (8K)
  • Disk Operating System
    • Depends on compatible disk drive, usually Atari DOS 1.0, Atari DOS 3.0, or DOS XE
Physical Dimensions:
  • Console:
    • Size (Inches):  2.25 H x 12.75 W x 8 D
    • Weight (Pounds):  2.25
  • Keyboard:
    • Size (Inches):  1.75 H x 13.75 W x 6.25 D
    • Weight (Pounds):  2.3


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Atari XE Game System XEGS n1 Atari XE Game System XEGS n2 Atari XE Game System XEGS n3 Atari XE Game System XEGS n4
Atari XE Game System XEGS n5 Atari XE Game System XEGS n6 Atari XE Game System XEGS n7 Atari XE Game System XEGS n8
Atari XE Game System XEGS n9


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Atari XE Game System XEGS o1 Atari XE Game System XEGS o2 Atari XE Game System XEGS o3 Atari XE Game System XEGS o4
Atari XE Game System XEGS o5 Atari XE Game System XEGS o6 Atari XE Game System XEGS o7 Atari XE Game System XEGS o8
Atari XE Game System XEGS o9 Atari XE Game System XEGS o10


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Atari XE Game System XEGS p1 Atari XE Game System XEGS p2 Atari XE Game System XEGS p3 Atari XE Game System XEGS p4
Atari XE Game System XEGS p5 Atari XE Game System XEGS p6 Atari XE Game System XEGS p7 Atari XE Game System XEGS p8
Atari XE Game System XEGS p9 Atari XE Game System XEGS p10 Atari XE Game System XEGS p11 Atari XE Game System XEGS p12
Atari XE Game System XEGS p13 Atari XE Game System XEGS p14 Atari XE Game System XEGS p15 Atari XE Game System XEGS p16
Atari XE Game System XEGS p17
