Sega Genesis Model 1

Blue Arrow Company:  Sega (Sega of America, Inc.)
Blue Arrow Model Number:  1601
Blue Arrow Manufacture Date/Year:  1989


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Sega Genesis Model 1 front Sega Genesis Model 1 back Sega Genesis Model 1 side1 Sega Genesis Model 1 side2
Sega Genesis Model 1 herol Sega Genesis Model 1 heror Sega Genesis Model 1 top1 Sega Genesis Model 1 top2


Blue Arrow Specifications

Core Unit:

  • Processor:  7.67 MHz Motorola 68000
  • Video Graphics:
    • 64K video RAM
    • 64 colors at once from a palette of 512
    • 2 scrolling layers, 1 sprite layer, 1 window plane
    • 80 maximum simultaneous sprites
    • 32 x 32 maximum sprite size
    • 320 x 224 display resolution
  • Audio:
    • Zilog Z80 sound processor
    • Yamaha YM2612 FM synthesizer
    • Texas Instruments SN76489 PSG
    • 8K sound RAM
    • 6 channels, stereo
    • Built-in headphone jack with volume control
Standard Controllers:
  • Sega three-button controller
  • Sega six-button controller (introduced in 1993)

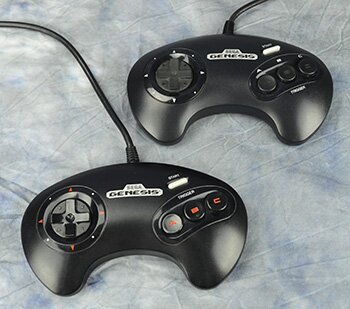

Sega Genesis Model 1 Controllers
Sega Three-Button Controllers

Game Format:
  • ROM Cartridge
Physical Dimensions:
  • Size (Inches):  2.25 H x 10.95 W x 8.45 D


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Sega Genesis Model 1 n1 Sega Genesis Model 1 n2 Sega Genesis Model 1 n3 Sega Genesis Model 1 n4
Sega Genesis Model 1 n5 Sega Genesis Model 1 n6 Sega Genesis Model 1 n7 Sega Genesis Model 1 n8
Sega Genesis Model 1 n9 Sega Genesis Model 1 n10


Blue Camera Camera Used:  Nikon D5100
Blue Info Images Copyright:  Click Here
Sega Genesis Model 1 o1 Sega Genesis Model 1 o2 Sega Genesis Model 1 o3 Sega Genesis Model 1 o4
Sega Genesis Model 1 o5 Sega Genesis Model 1 o6 Sega Genesis Model 1 o7 Sega Genesis Model 1 o8
